Name: Qiming Nos: FF153
SKU: 2085
Price: 1.00 USD
Availability: InStock

Qiming Nos: FF153

$1.00

Sold:

Reviews:

D.E. Frame

Note: The price $1.00 only for inquiry purposes!

We will send you quotation as soon as receive your inquiry list.

Ship to: Worldwide

10 in stock (can be backordered)

D.E. Frame

For:
Delco CS130D Series IR/IF Alternators

Used On:
(1999-93) Buick, Chevrolet, Oldsmobile, Pontiac

Unit Nos:
Delco 10480052, 071, 119, 195, 196, 217, 233, 235, 236, 237, 238, 259, 263, 353
Lester 8155, 8156, 8222
WAI 1-1797-01DR, 1-1797-02DR, 1-1799-01DR, 1-1799-02DR, 1-2068-01DR

Replaces:
WAI 21-153

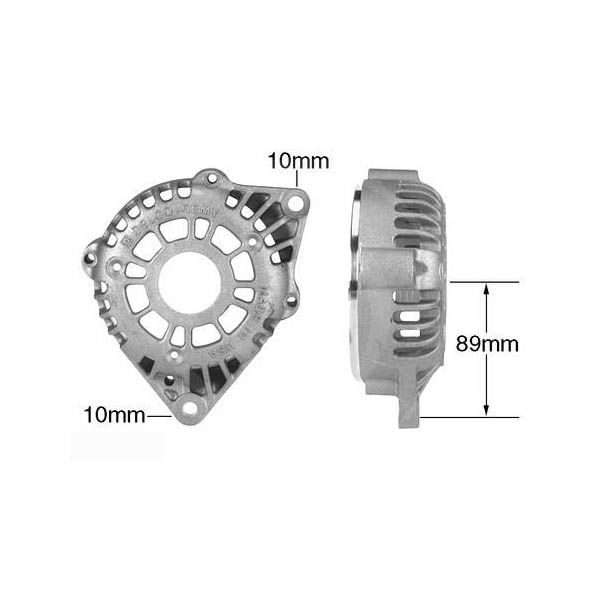

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 14mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 89mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 24.5mm

Specification

Category: Aluminum Housing

Specification

OEM	Delco

Specification

Specification
