Name: Qiming Nos: FF230
SKU: 2107
Price: 1.00 USD
Availability: InStock

Qiming Nos: FF230

$1.00

Sold:

Reviews:

D.E. Frame

Note: The price $1.00 only for inquiry purposes!

We will send you quotation as soon as receive your inquiry list.

Ship to: Worldwide

10 in stock (can be backordered)

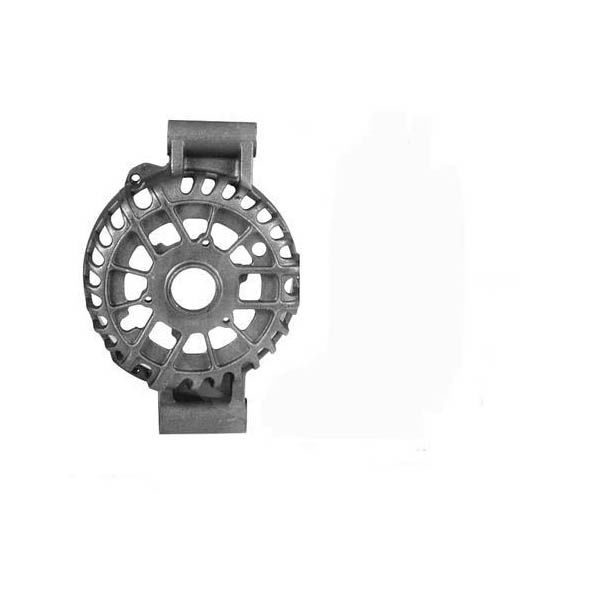

D.E. Frame

For:
Ford 6G Series 105 Amp Small Frame IR/IF Alternators

Used On:
(2002-98) Ford E Series Van, F Series Pickup 7.3L
(2002-01) Ford Escape, Focus; Mercury Cougar 2.0L, 2.5L, 3.0L

Unit Nos:
Ford 98AB-10300-FC, 98AZ-10346-FA, F81U-10300-CC, F81U-10300-EB, F81U-10300-GA, F81Z-10346-CA, F81Z-10346-EA, F81Z-10346-GA
GL-410, GL-412, GL-422, GL-455
Lester 7796, 7798, 7799
WAI 1-2172-31FD, 1-2173-11FD, 1-2178-31FD, 1-2350-11FD

Replaces:
WAI 21-230

Dimensions:
Mtg. Ear Hole Size: 10mm
Mtg. Ear Thickness: 55mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 88mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm

Specification

Category: Aluminum Housing

Specification

OEM	Ford

Specification

Specification
