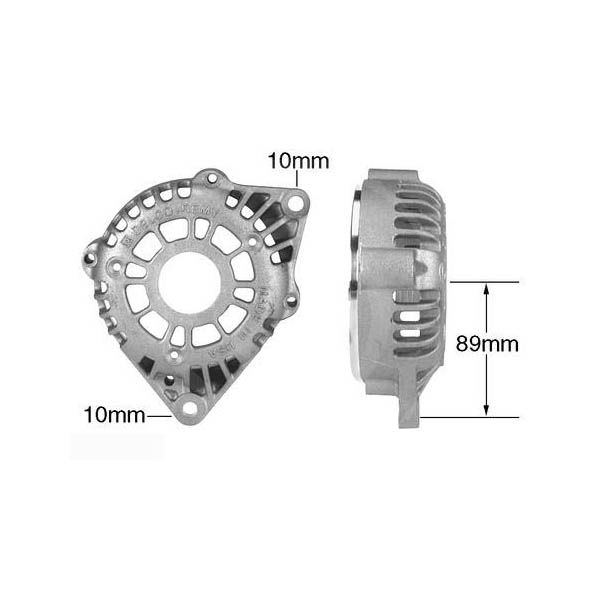

D.E. Frame
For:
Delco CS130D Series IR/IF Alternators
Used On:
(2002-94) Chevrolet, GMC, Isuzu, Oldsmobile
Unit Nos:
Delco 10479981, 10479984, 10480017, 10480072, 10480187, 10480188, 10480189, 10480190, 10480252
Lester 8160, 8233
WAI 1-1802-21DR, 1-1802-31DR, 1-1802-42DR, 1-2175-31DR
Replaces:
WAI 21-155
Dimensions:
Mtg. Ear Hole Size: M8 x 1.25
Mtg. Ear Thickness: 16mm
Mtg. Foot Hole Size: 10mm
Mtg. Foot to Bearing Center: 80mm
Bearing Bore Dia: 47mm
Stator Bore Dia: 130mm
Stator Bore Depth: 24.5mm
